TURBINA DE 10 KW CONEXIÓN EN RED ELECTRICA

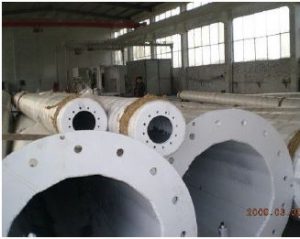

Free Standing tower

• Height of pole:  1 0 m
• Thickness: 8 mm
• Tower diameter: 550 (mm)
• Flange:  32 0* 32 0*1 8 (mm)
• Sections of tower:  2
• Material: Q235 Steel pipe
• Surface treatment: hot dip galvanized & plastic spraying

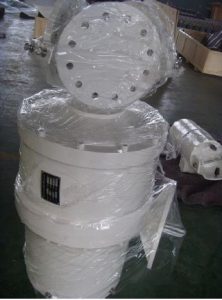

Generator

• Blades diameter: 8.0(M)
• Rated rotor speed: 200(r/m)
• Rated speed:  10 (m/s)
• Rated power: 10 KW
• Max power:  20 KW
• Output voltage:  220 V
• Startup wind speed: 3 (m/s)
• Work speed:  3-30(m/s)
• Security wind speed:  50(m/s)
• Generator shell material: Pressure cast iron

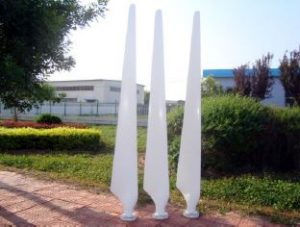

Blades

• Material of blades:  FRP Lay up by hand
• Number of blades:   3PCS
• Diameter of blades:  8.0 M

Dome

• Material of dome: FRP Lay-up by hand
• Number of dome: 1 PCS

Controller

• Power of the equipped wind turbine (W): 10Kw
• Operating mode: Continuous
• Function: Commutation, control
• Operating environment: Temperature -10 ∼  40 ℃, humidity≤80%
• PWM unloading voltage: (DCV）≥360V
• Brake voltage 1 (DCV : 410±5V
• Stop delay time   (min) :10-20 minutes
• Low voltage indicator (V):  ≤200V
• PWM unloading fuse (A): 6A
• DC output fuse (A):  10A

Tail Vane Board & Tail Vane Booms

• Material: Q235 Steel plate
• Surface treatment: painting against decaying

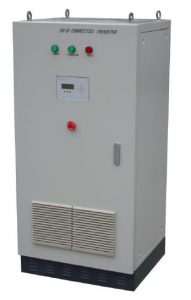

Inverter

• Type：BNWG-10KS
• Rated capacity：10 KVA
• Rated AC output power：10 KVA
• Max. AC output power：12 KVA
• Insulate mode：Low frequency transformer
• Recommended PV array power：12 KVA
• Max. open circuit voltage：780VDC
• MPPT range：200~780VDC
• Max. input current：50A
• Connecting mode of battery board：Line terminals
• Max. efficiency：94%
• Europe efficiency：92%
• Operating range utility voltage (three phase):320~440VAC
• Operating range utility frequency：50HZ±2%&60HZ±2%
• Total Harmonic Distortion (THD)：<3%
• Power factor：≥0.99
• Zero power consumptionat night：<10W
• Communication Interfaces：RS485/RS232
• Electrical insulation properties：1500Vac，1minute
• Operation surroundings Temperature：-25~+60℃
• Operation surroundings Humidity：35~85%RH, no condensing
• Protection：Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat.
• Cooling mode：Windy
• Noisy：<50dB
• Waterproof and Dustproof Class：IP20（indoor）、IP65（outdoor）

Cables

• Dim (copper): Φ5mm 17m
• Material: copper & PVC

• Accessories:  Base, Anchorsof Base,nut & washer & bolt suitable for installation.
• Packing: PLYWOOD CASE
