TURBINA DE 3KW CONEXIÓN EN RED

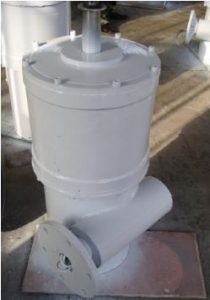

Generator

• Blades diameter: 5.0(M)
• Rated rotor speed: 200(r/m)
• Rated speed:10(m/s)
• Rated power:3000W
• Max power:4500W
• Output voltage:220V
• Start up wind speed: 3(m/s)
• Work speed:3-30(m/s)
• Security wind speed:50(m/s)
• Generator shell material：Pressure cast iron

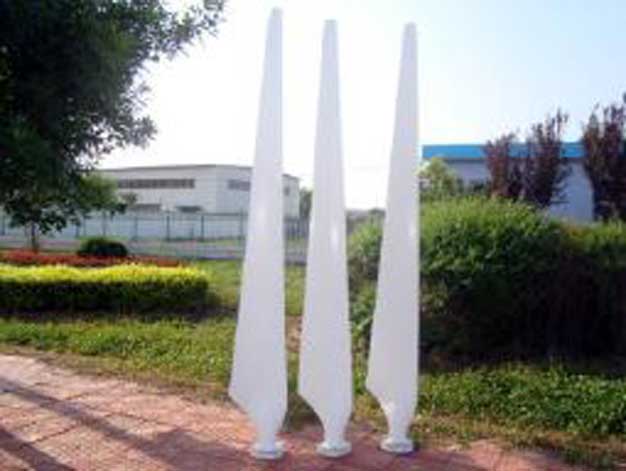

Blades

• Material of blades：FRP Lay-up by hand
• Number of blades：3PCS
• Diameter of blades: 5.0M

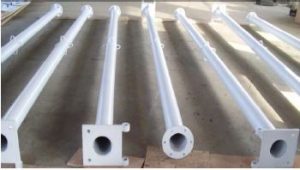

Guy wire tower

• Height of pole: 8 m
• Thickness: 6 mm
• Tower diameter: 133(mm)
• Flange:150*150*10 (mm)
• Sections of tower：2
• Material: Q235 Steel pipe
• Surface treatment: painting against decaying

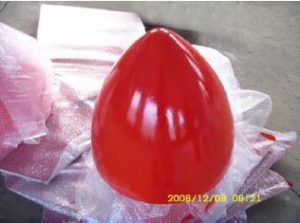

Dome

• Material of dome：FRP Lay-up by hand
• Number of dome：1PCS

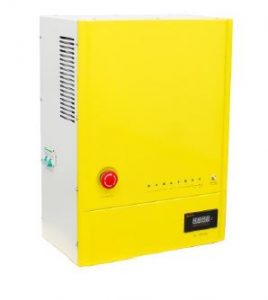

ON-GRID Controller

• Power of the equipped wind turbine (W): 3.5Kw
• Operating mode: Continuous
• Function: Commutation, control
• Operating environment: Temperature -10～40℃, humidity≤80%
• PWM unloading voltage （DCV）: ≥380V
• Brake voltage 1 （DCV）: 410±5V
• Stop delay time （min）: 10-20 minutes
• Low voltage indicator （V）: ≤200V
• PWM unloading fuse (A): 6A
• DC output fuse (A): 10A

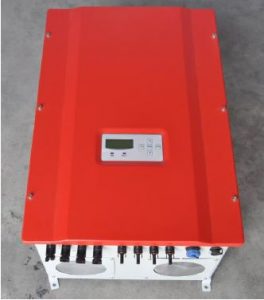

ON-GRID Inverter

• Type: BNWG-3KD
• rated capacity: 3 KW
• Rated AC output power:3KW
• Max. AC output power:3.6KW
• Permission AC Voltage Range(Nominal):220V±15%
• Permission AC Voltage Range(Maximum):220V±20%
• Insulatemode: Low frequency transformer
• Recommended wind turbine power: 3KW
• Max. open circuit voltage: 450V
• MPPT range: 180~450VDC
• Max. input current: 15A
• Connectingmode of battery board: water-proof direct-plug terminals
• Max. efficiency: 94%
• Europe efficiency: 92%
• Operatingrange utility voltage(single phase): 180~265WC
• Operatingrange utility frequency: 50HZ±2%&60HZ±2%
• Total Harmonic Distortion(THD): <3%
• Powerfactor: ≥0.99
• CommunicationInterfaces: RS485/RS232
• Electrical insulation properties: 1500Wc，1minute
• Operationsurroundings Temperature: -25~+60℃
• Operationsurroundings Humidity: 0~100%
• Protection: Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat.
• Coolingmode: Windy
• Noisy: <40dB
• Waterproofand Dustproof Class: IP20（indoor）、IP65（outdoor）
• Dimension(L×W×H mm): 350*200*500
• Weight（kg）: 45

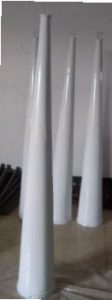

Tail Vane Board & Tail Vane Booms

• Material: Q235 Steel plate
• Surface treatment: painting against decaying

Cable

• Dim (copper): Φ4mm 13m
• Material: copper & PVC

• Accessories: Base, Wire, wire Tighting Tool, Anchors of Base, Anchors of Wire ,nut & washer & bolt suitable for installation
• Packing: PLYWOOD CASE
