TURBINA DE 2KW CONEXIÓN EN RED

Categoría:

Descripción

Generator

  • Rated power:2000W
  • Max power:3000W
  • Rated rotor speed: 300(r/m)
  • Rated speed:8(m/s)
  • Output voltage:96V
  • Start up wind speed: 3(m/s)
  • Work speed:3-30(m/s)
  • Security wind speed:40(m/s)
  • Generator shell material:Pressure cast iron

Guy wire tower

  • Height of pole: 6 m
  • Thickness: 4mm
  • Tower diameter: 89(mm)
  • Flange: 150*150*10 (mm)
  • Material: Q235 Steel pipe
  • Surface treatment: hot dip painting against decaying

Blades

  • Materialof blades:FRP Lay-up by hand
  • Number of blades:3PCS
  • Diameter of blades: 4.0M

Dome

  • Material of dome:FRP Lay-up by hand
  • Number of dome:1PCS

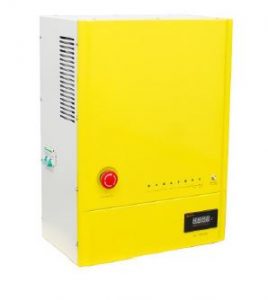

ON-GRID Controller

  • Power of the equipped wind turbine (W): 2. 5Kw
  • Operating mode: Continuous
  • Function: Commutation, control
  • Operating environment: Temperature -10~40℃, humidity≤80%
  • PWM unloading voltage (DCV): ≥380V
  • Brake voltage 1 (DCV): 410±5V
  • Stop delay time (min): 10-20 minutes
  • Low voltage indicator (V): ≤200V
  • PWM unloading fuse (A): 6A
  • DC output fuse (A): 10A

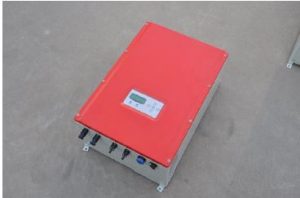

ON-GRID Inverter

  • Type: BNWG-2KD
  • Rated capacity: 2 KW
  • Rated AC output power:2KW
  • Max. AC output power:2.4KW
  • Insulatemode: Low frequency transformer
  • Recommended wind turbine power: 2KW
  • Max. open circuit voltage: 450V
  • MPPT range: 180~450VDC
  • Max.input current: 15A
  • Connecting mode of battery board: water-proof direct-plug terminals
  • Max. efficiency: 94%
  • Europe efficiency: 92%
  • Operatingrange utility voltage(single phase): 180~265WC
  • Operatingrange utility frequency: 50HZ±2%&60HZ±2%
  • Total Harmonic Distortion(THD): <3%
  • Powerfactor: ≥0.99
  • CommunicationInterfaces: RS485/RS232
  • Electrical insulation properties: 1500Wc,1minute
  • Operationsurroundings Temperature: -25~+60℃
  • Operationsurroundings Humidity: 0~100%
  • Protection: Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat.
  • Coolingmode: Windy
  • Noisy: <40dB
  • Waterproofand Dustproof Class: IP20(indoor)、IP65(outdoor)
  • Dimension(L×W×H mm): 350*200*500
  • Weight(kg): 45

Tail Vane& Tail Rob

  • Material: Q235 Steel plate
  • Surface treatment: painting against decaying

Cables

  • Dim (copper): Φ2.5mm 11m
  • Material: copper & PVC



  • Other Accessories: Base, Wire, wire Tighting Tool, Anchors of Base, Anchors of Wire ,nut & washer & bolt suitable for installation
